Exposure machine

Product description:The exposure machine using electronic energy-saving transformers, compared with the traditional transformer exposure machine about 25% energy saving.  In the same power output, the electronic energy-saving transformer output UV intensity higher than the traditional transformer about 30%. Product Features:UVED-9000 Exposure Machine Features:1. Operation interface can be in / English switch, the use of intelligent …

PCB MACHINES

Manual hot roller laminator machine

Product description: The lamination machine inside the drum temperature of the heating mode, the use of day OMRON ESC2 thermostats and non-contact switch (SSR) for precise control pressing wheel temperature so that the film achieve the best state. Before the film has sticky mechanism for cleaning the PCB board (optional), dry film and the board …

PCB MACHINES

Automatic edge beveling machine

Product description: The milling machine uses polycrystalline diamond milling cutter, fine milling quality assurance, together with the change to automatic investment board and received board mechanism, once the material that is able to complete the four sides of the grinding, greatly improving production efficiency. Product Features: 1, single and double panel, inner plate, a pressure …

PCB MACHINES

Copper and Tin plating line

Technical Data  Cathod swing angle:  15     15 times/min  Filter  3~5 tanks times/hour  Temperature tolerance  ±1℃ Min hole diameter:   Φ2.20 Copper and Tin plating line main technical parameter. Features: Adopted PLC and touch screen control system.The oscillatory angle of cathode is 15º and the chemical tanks configurate  with motor vibrator and pneumatic vibrator alternatively,that is improved the hole of PCB in plating process. Imported brake deceleration motor for driving transmission,operation is smooth and reliable. The de-smear tank with regeneration system that can increase efficiency and reduced the cost. The concentration of air exhaust and drainage, make appearance more clean and easy to installation. Appearance is adopt pp materials ,have good weather-resist and water resist

PCB MACHINES

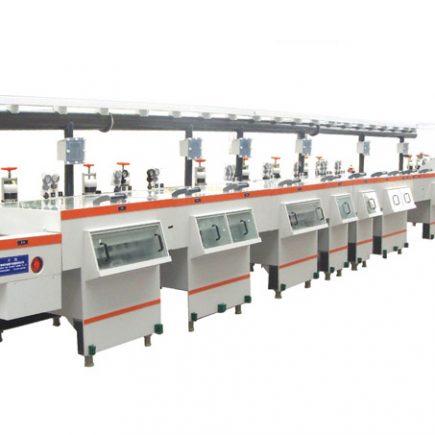

Anti-oxidation production line

Technical Data   Dimension:  7820mm×2300mm×2000mm   Working height   900mm  Working width:  650mm  Wheelbase:  28mm  35mm  48mm  70mm   Working speed:  0.5~3.0m/min  Supply voltage:   Three phase four wire,380V/50Hz  Total power:   42KW   Max work piece:   610mm×460mm   Min work piece:  150mm×150mm  Working thickness:  0.4~3.0mm  Water consumption:   24~36 L/min Working process: Feed → Chemical washing → Recycle water washing1,2 → Urban water washing → Mico etching → Pump water washing →  Acid washing → Recycle water washing3,4 → DI water washing → Blot up → Drying → OSP → Drying → Recycle water  washing 5,6,7 →DI water washing →Blot up →Cool drying  →Hot drying →Discharge Application: This production line is the best choice to replacement of hot air leveling technology. It is used for many kinds of series  potions formula, such as WPF106, 207, 19, 21, TR108, 206 and so on. Copper surface can form a protective film  uniformly , that it has excellent inoxidizability and weldability. So this equipment is named a new generation products  and mainly used in PCB industry.

PCB MACHINES

Tin-lead stripping machine

Technical Data   Dimension:  7820mm×2300mm×2000mm   Working height   900mm  Working width:  650mm  Wheelbase:  28mm  35mm  48mm  70mm   Working speed:  0.5~3.0m/min  Supply voltage:   Three phase four wire,380V/50Hz  Total power:   42KW   Max work piece:   610mm×460mm   Min work piece:  150mm×150mm  Working thickness:  0.4~3.0mm  Water consumption:   24~36 L/min Working process: Feeding → Stripping → Recycle water washing  1,2,3 → Running water washing → Blot up →  Cool drying → Hot drying → Discharge
